Solenoids

KV

Solenoids

コンテンツ

We have a wide range of solenoid actuator product lines utilizing our heat treatment, joining, and magnetic circuit designing technologies.

Compact solenoids

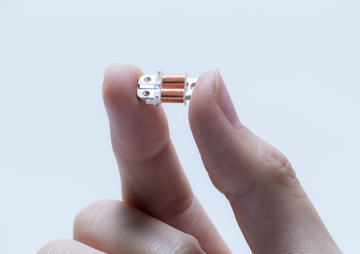

Compact solenoid

Compact solenoid

This is a self-maintaining DC solenoid that is small in size, low in profile, and high in attraction force. Using the pulse voltage enables operation with low power consumption.

Features

  1. Achieved small product size of 3.5 mm in thickness
  2. Self-maintaining DC solenoid with high attraction force
  3. The pulse voltage-based operation achieved energy conservation

Application examples

  • Operation of movable components of camera, OA equipment and PCs, etc.
  • Automatic pressing of the locker switch using external electric power

Specification examples

Part No. Attraction force Secession voltage DC resistance Back tension Operating stroke Pulse width
(N) (V) (Ω) (N) (mm) (ms)
WSM-05A-GL 4.8 3.7 15 0.8 2.5 50
WSM-05B-GL 4.8 3.7 12 0.8 2.5 10

Proportional Solenoid Valves

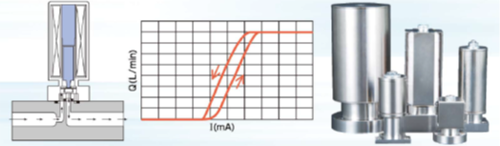

This is a proportional control valve based on solenoid actuator, available in various series ranging from low flow to high flow (50 cc to 500 L). This product is utilized in a wide variety of fields ranging from the semiconductor field to general industry.

Proportional Solenoid Valves

Proportional Solenoid Valves

Shut-off Valves

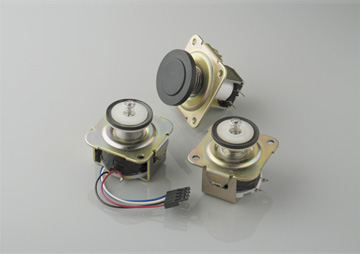

Shut-off Valves

Shut-off Valves

Shutoff valves are built into gas meters to shut off the gas supply automatically in an emergency such as an earthquake. For city gas, this product is utilized in a wide range of applications ranging from household use to industrial use.
